Description

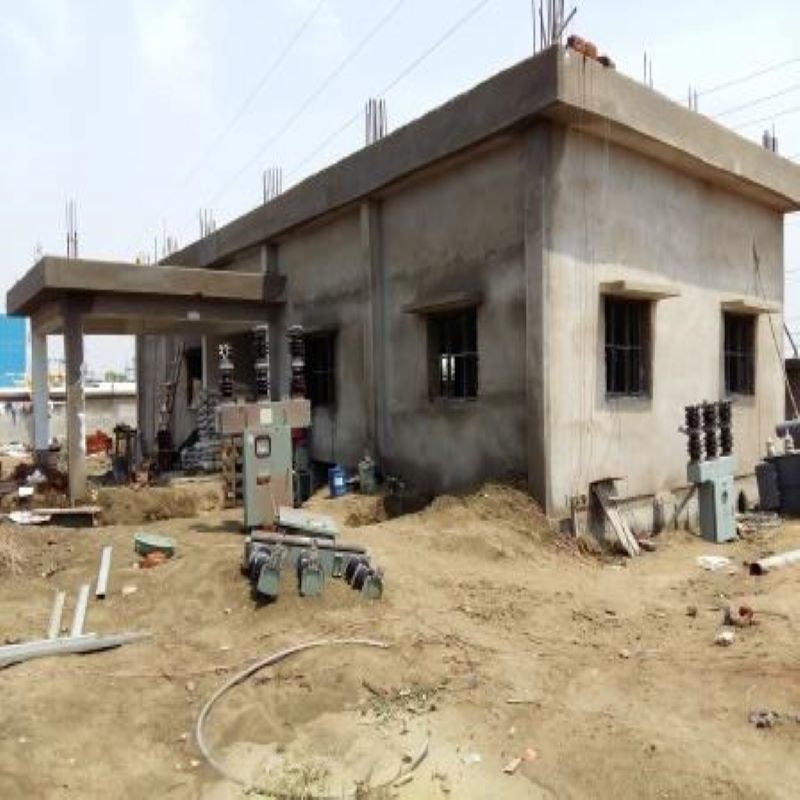

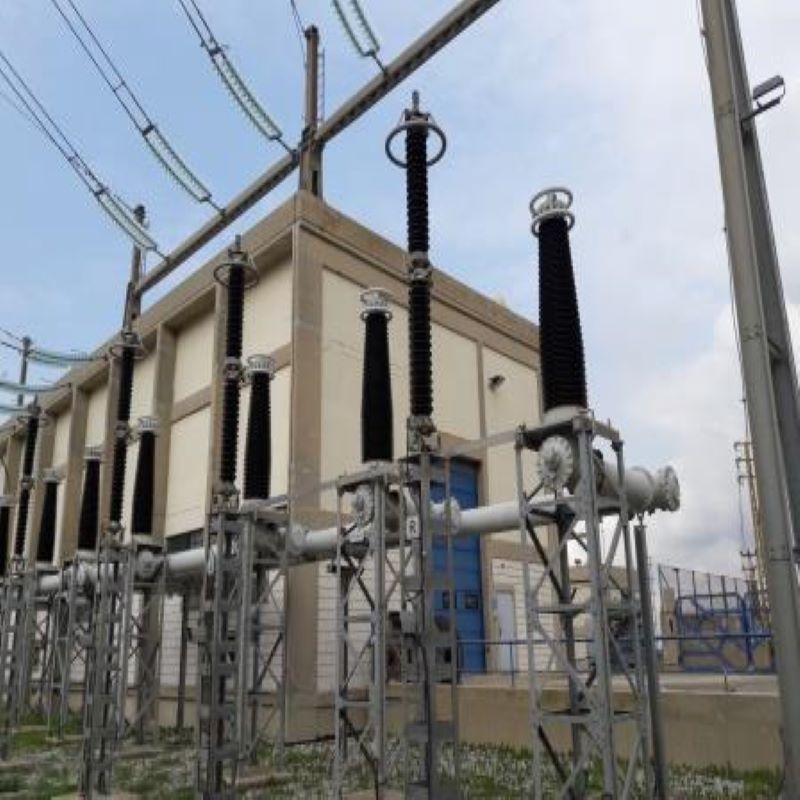

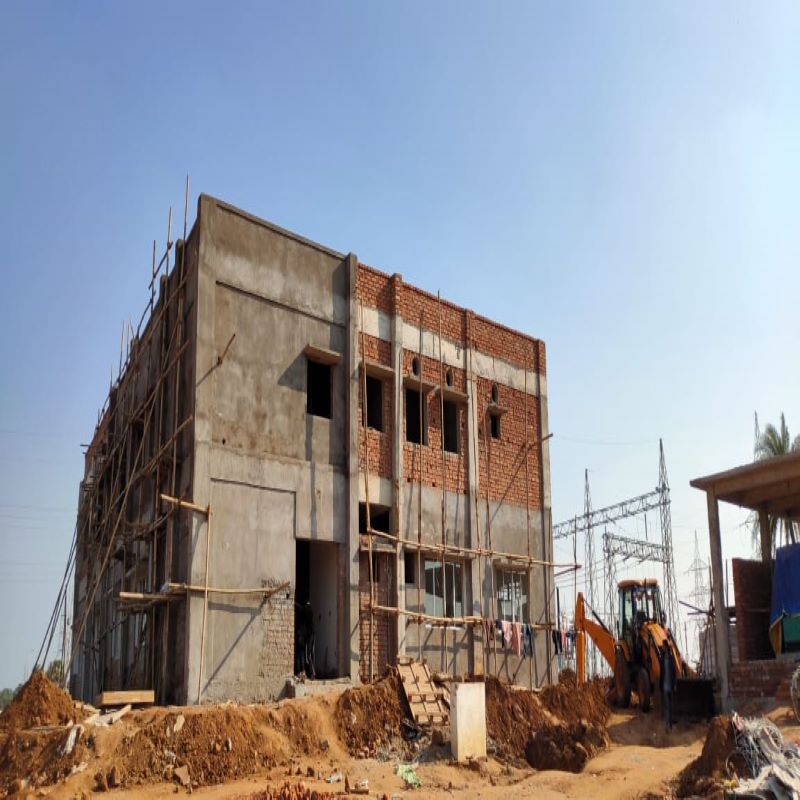

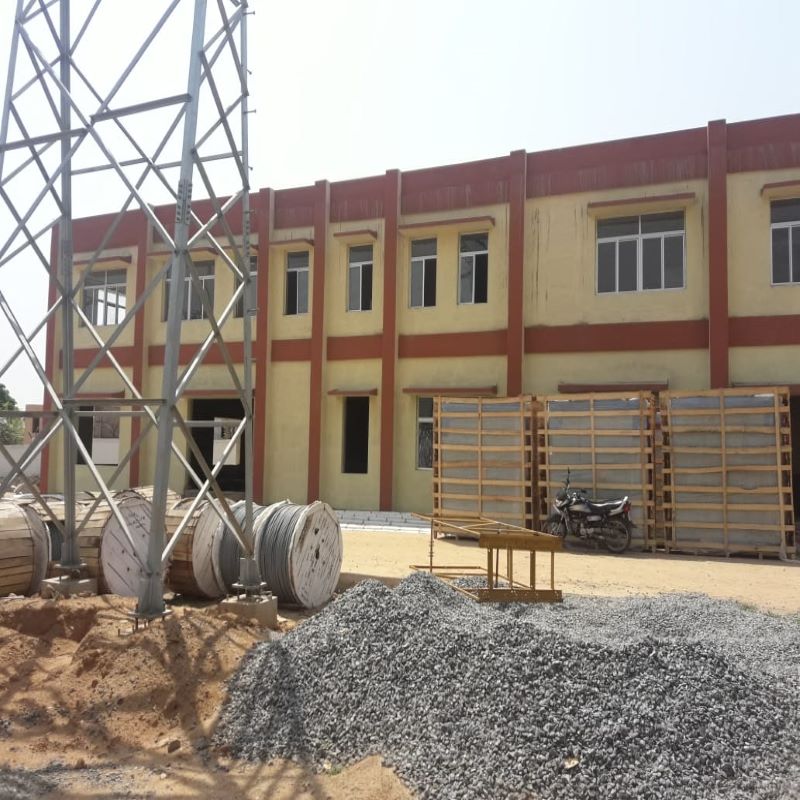

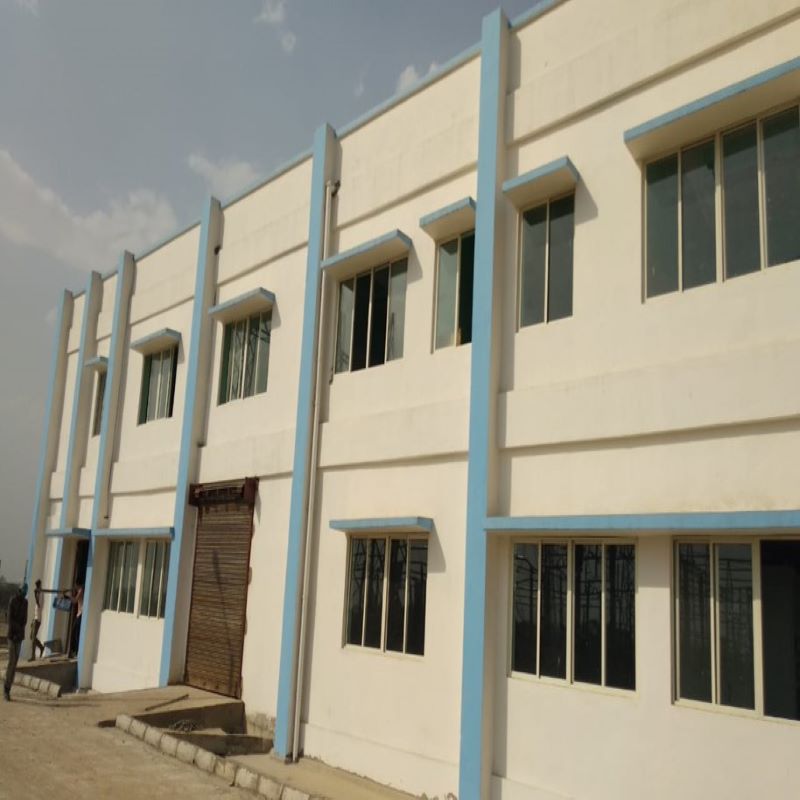

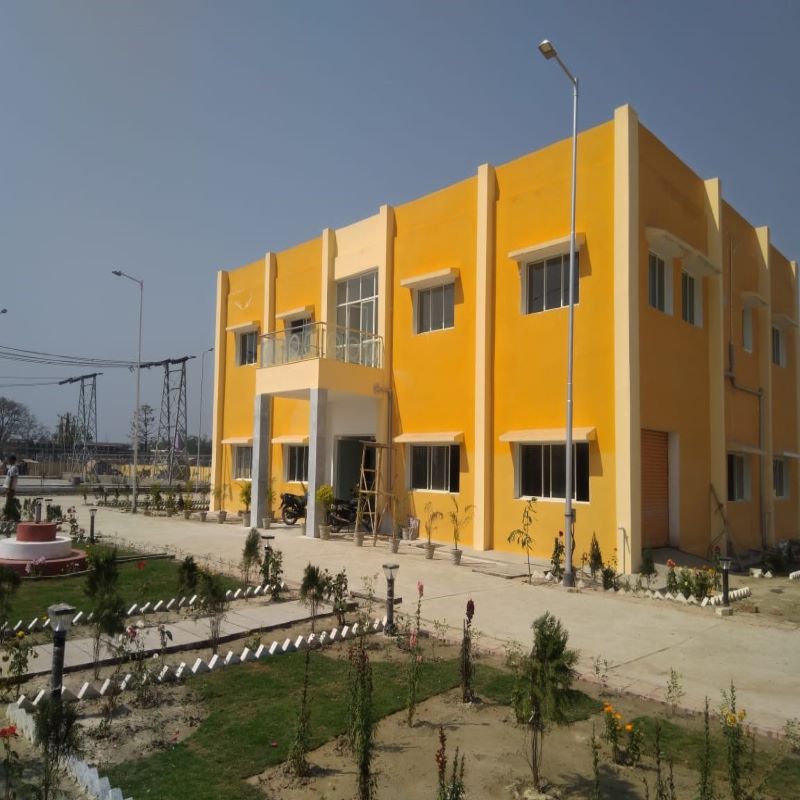

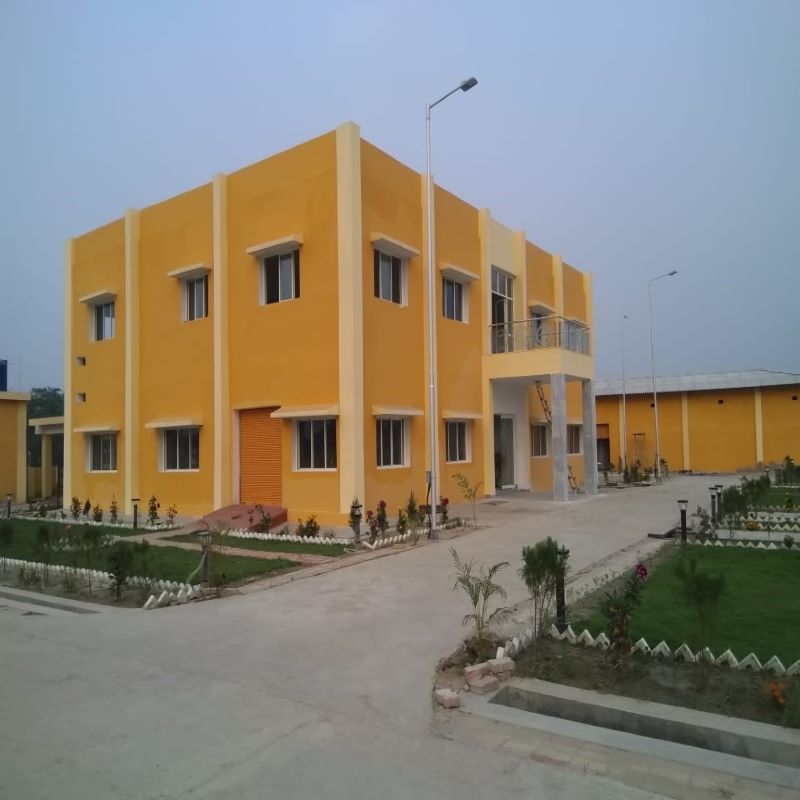

Every EHV Substation needs Switchgear building, Control building, DG shed / building, Store, Fire fighting pump house, Drainage pump house, Staff quarters, Dormitory etc. to meet various technological and residential needs of the facility. We provide the following civil drawings for these buildings : 1. Foundation plan and details 2. RCC details of Column and plinth / grade beams 3. RCC details of Floor slabs, Roof slabs 4. RCC details of Lintel beams 5. For buildings with steel roof, structural details of truss 6. RCC details of stair case and other misc. facilities of the buildings 7. RCC design and drawings for foundations of Pre engineered metallic buildings 8. General arrangement and constructional details of Septic tank and soak pit 9. Civil design calculations of the above civil and structural drawings as per National / International standards Satcon is providing above type of drawings and design calculations for Indoor and Outdoor substations upto 400kV voltage level in India and many other countries.
