Structural Design and Drawings for Substation Gantry, Equipment Support and Transmission line Towers

We’re yet to set up eCommerce on this website, please click on the button below to drop an enquiry or request a quote in the meantime.

Make an enquiry

Description

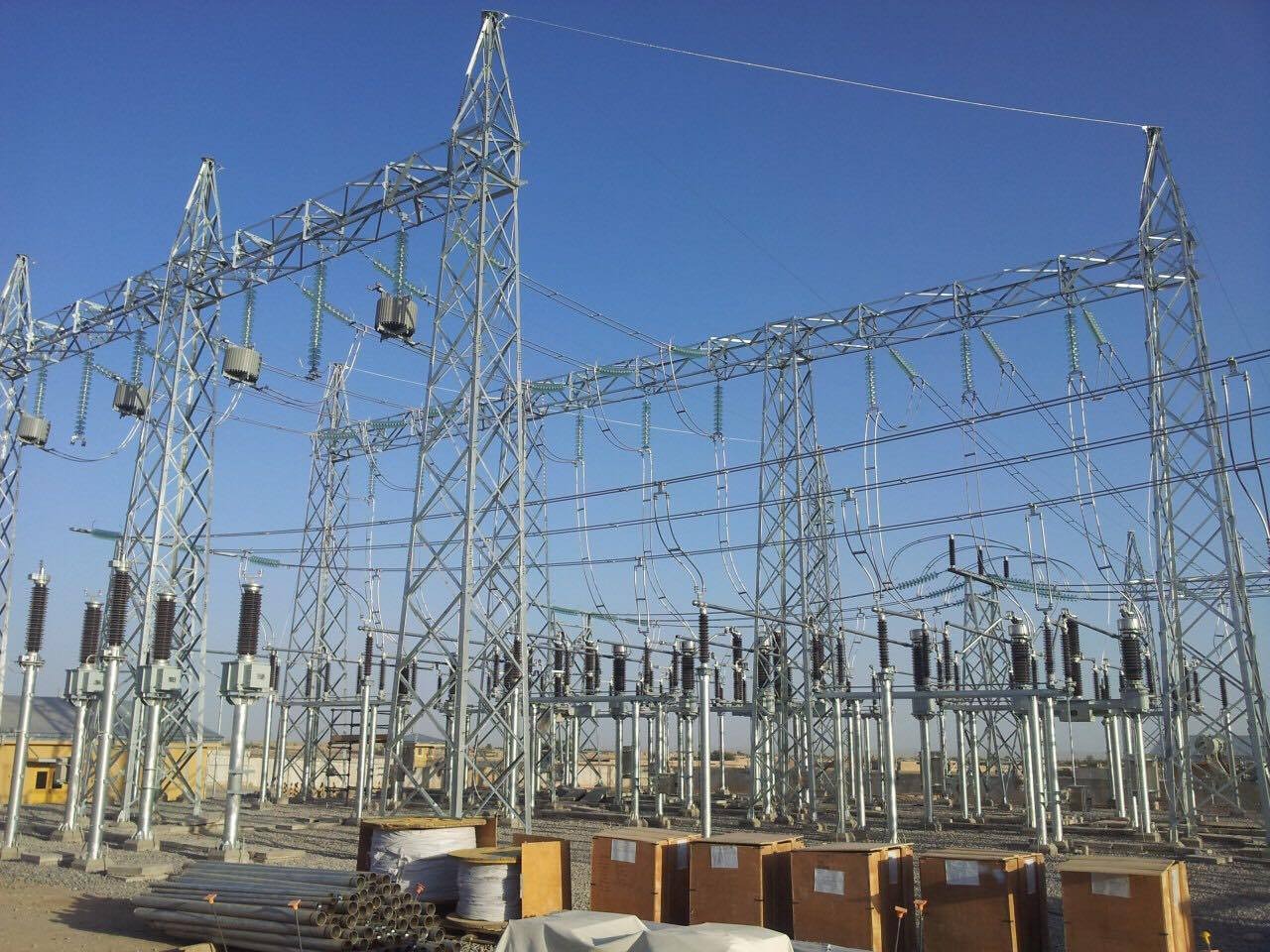

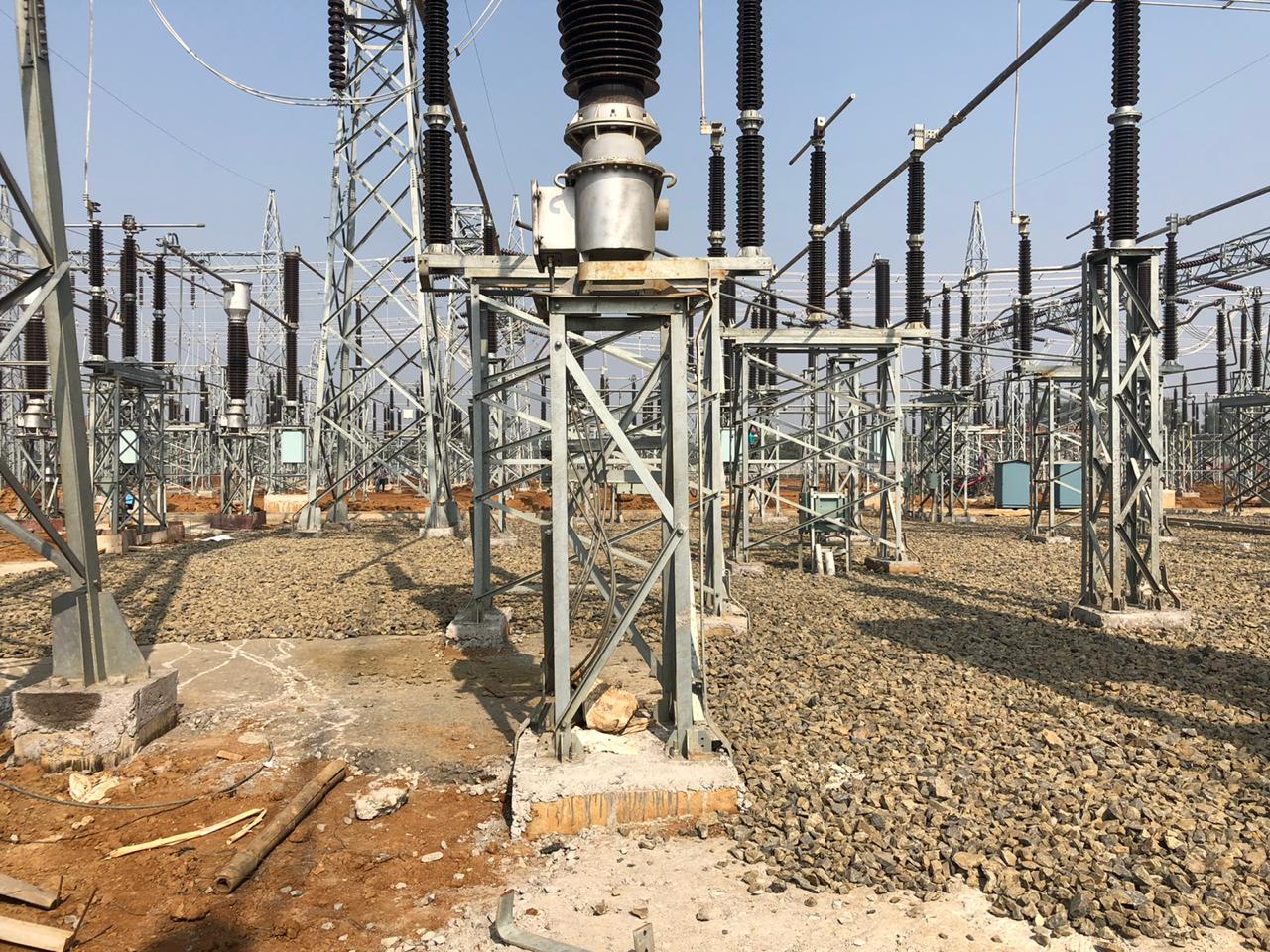

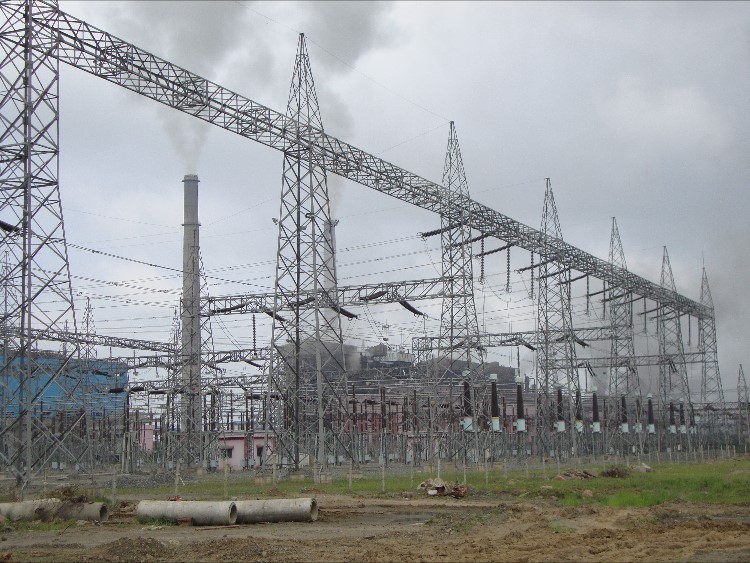

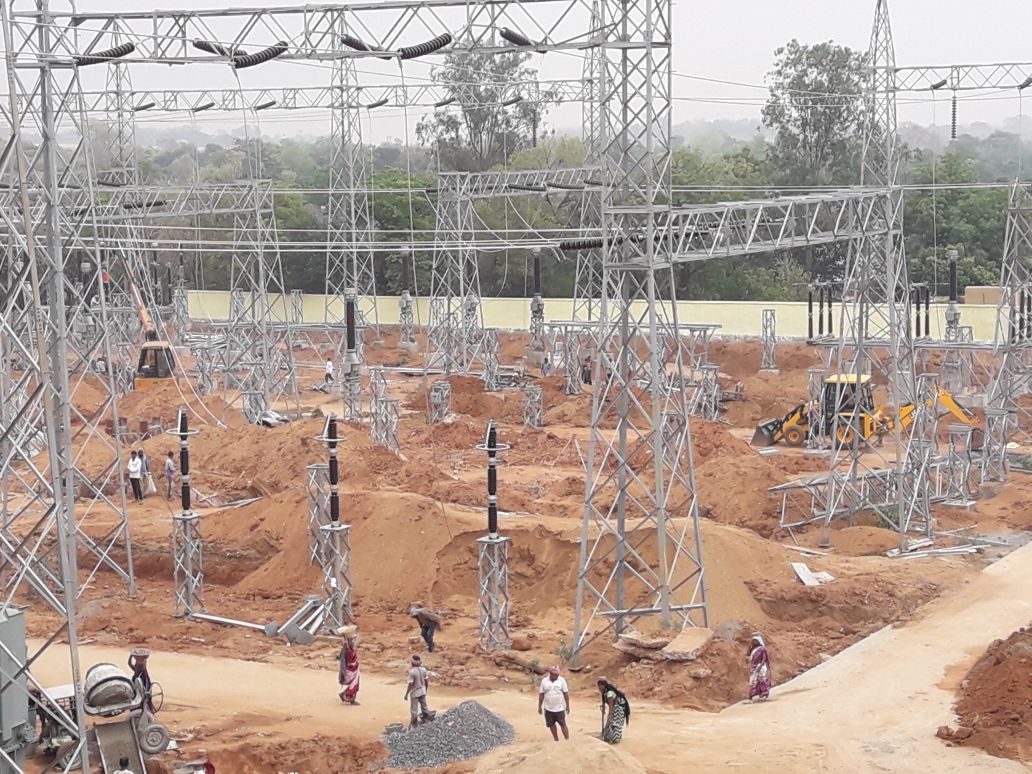

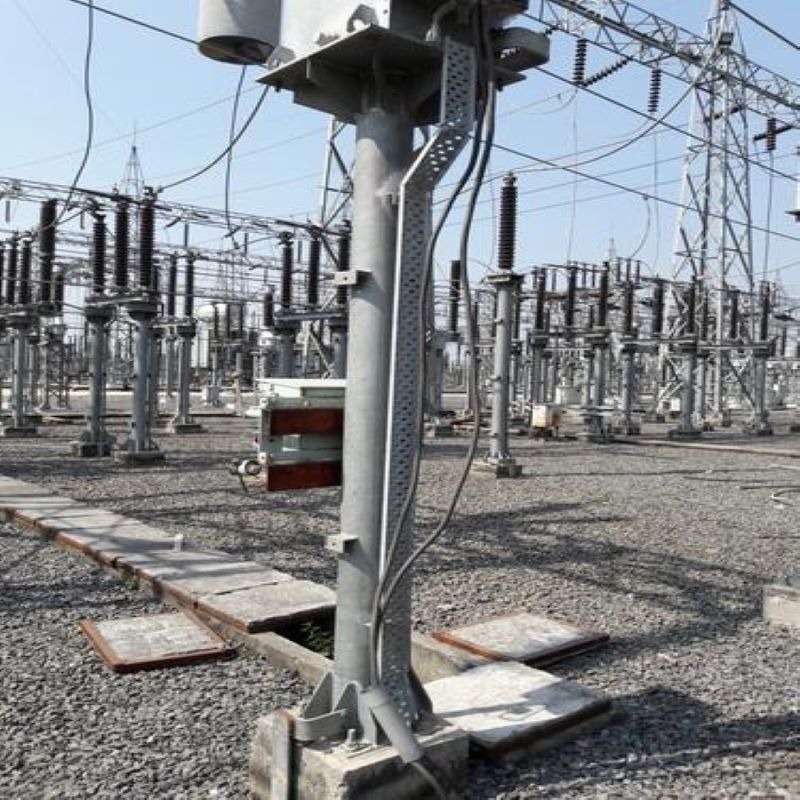

Structural G.A drawings (with BOM and weight), Fabrication drawings, Shop drawings and design calculations for the following : 1. Steel Lattice type Gantry towers, Beams in a Switchyard. 2. Steel Lattice / Tubular / Pipe type Equipment support structures in a Switchyard. 3. Steel Lattice type Transmission towers (66 - 400)kV. 4. Design Calculation for above type of Steel Structures complying with Indian and International standard/s as required by the Customer. 5. Steel Monopole type Transmission tower.
