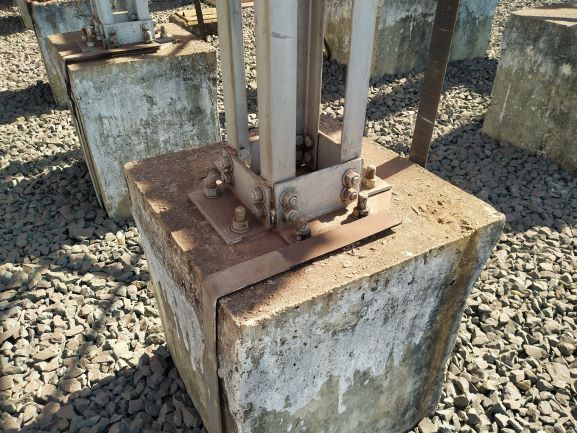

Equipment foundations at an EHV switchyard are designed on the basis of different type of loads acting on the equipment and its support structure such as wind load, short circuit load, equipment weight etc. The equipment foundation is designed on the basis of relevant Indian standard or International standard as specified in the Client's technical specification. We have delivered such designs in substations upto 400kV. Such founadtions are required in a switchyard for Circuit breaker, Isolator, CT, PT, CVT, LA and BPI.
