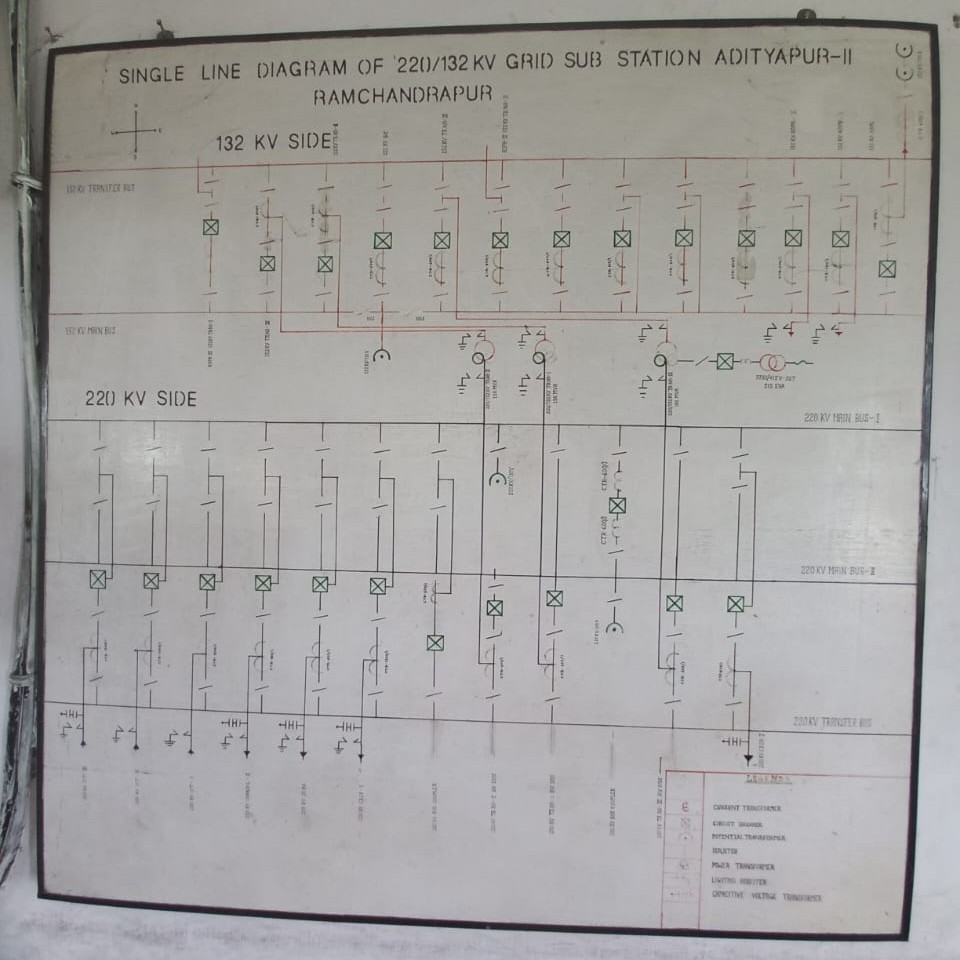

Single line diagram is one of most important drawings of a project which shows the electrical connection between different equipment and devices in one line form. This one line may denote 3 phase or 2 phase or single phase circuit. It shows different switching, controlling and protective devices in the circuit, their normal and short circuit ratings, transformation equipment, their ratings, power cables, their cross sectional sizes.
Satcon has the experience to prepare SLD of electrical systems upto 765kV voltage level. The SLD we prepare are of following types:
1. Key SLD
2. Protection and metering SLD
3. SLD of complete LV AC and DC aux. Systems
4. SLD of capacitor banks
5. SLD of Normal and Emergency Lighting Dist board
Satcon has the experience to prepare SLD of electrical systems upto 765kV voltage level. The SLD we prepare are of following types:
1. Key SLD
2. Protection and metering SLD
3. SLD of complete LV AC and DC aux. Systems
4. SLD of capacitor banks
5. SLD of Normal and Emergency Lighting Dist board
