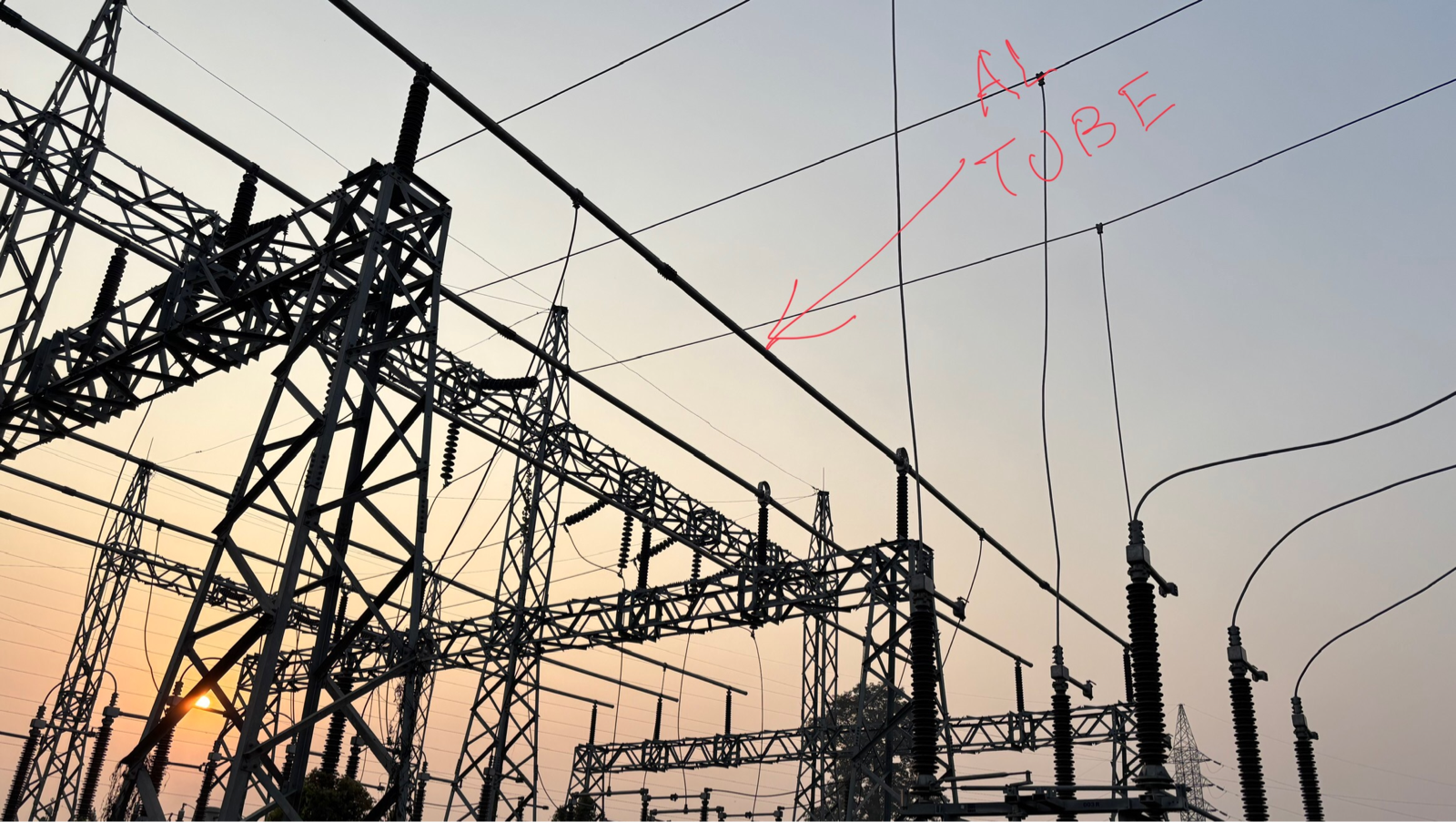

Short Circuit force calculation of Aluminum Tubular bus conductor : Al tubular pipes are used in extra high voltage substations to form main and transfer bus bars and for connecting one Switchyard equipment to another equipment. The Pipe size, inner diameter, outer diameter, thickness, Al alloy material are decided on the basis of feeder or bus bar rated current, as applicable. The sizing is dependent on geographical location, ambient temperature, solar radiation and few other atmospheric parameters. The sag of the AL pipe is one of the major criteria that determines the bus bar support span. During flow of the short circuit current through the bus bar, mechanical force gets generated between the phase conductors, hence bus bar support span should be such that the mechanical force does not damage the AL pipe or the bus support post insulators. The sizing calculation is done as per relevant IEC and IEEE standards. Satcon has more than 2 decades of experience in preparing such calculations for various extra high voltage substations in many parts of the world. You can contact at the given number if you are in need of getting done such calculations.
